**An inexpensive replacement for compression packings in pumps that can convert to mechanical seals.**

NUTECH D3 ASSEMBLY SEAL

Features and Benefits

Large single spring compensates for minor shaft misalignment.
Hex drive design distributes torque during start-up creating a positive seal that withstands reverse pressure at shut-down and changes of pressure.
Crimped carbon holder retains carbon faces during installation without adhesives.

Operating Specifications

Temperature limit:
-40C° F to ﹢400° F ( -40° C to +205° C)
based on standard elastomers

Pressure limit to: 200 psi

Standard Material Construction

Metal Components: 302/304 SS

Face: Chemical Grade Carbon, Tungsten Carbide, Silicon Carbide

Elastomer: Nitrile or Viton, also available upon request - EPR and neoprene

Seat: Ceramic, Silicon Carbide

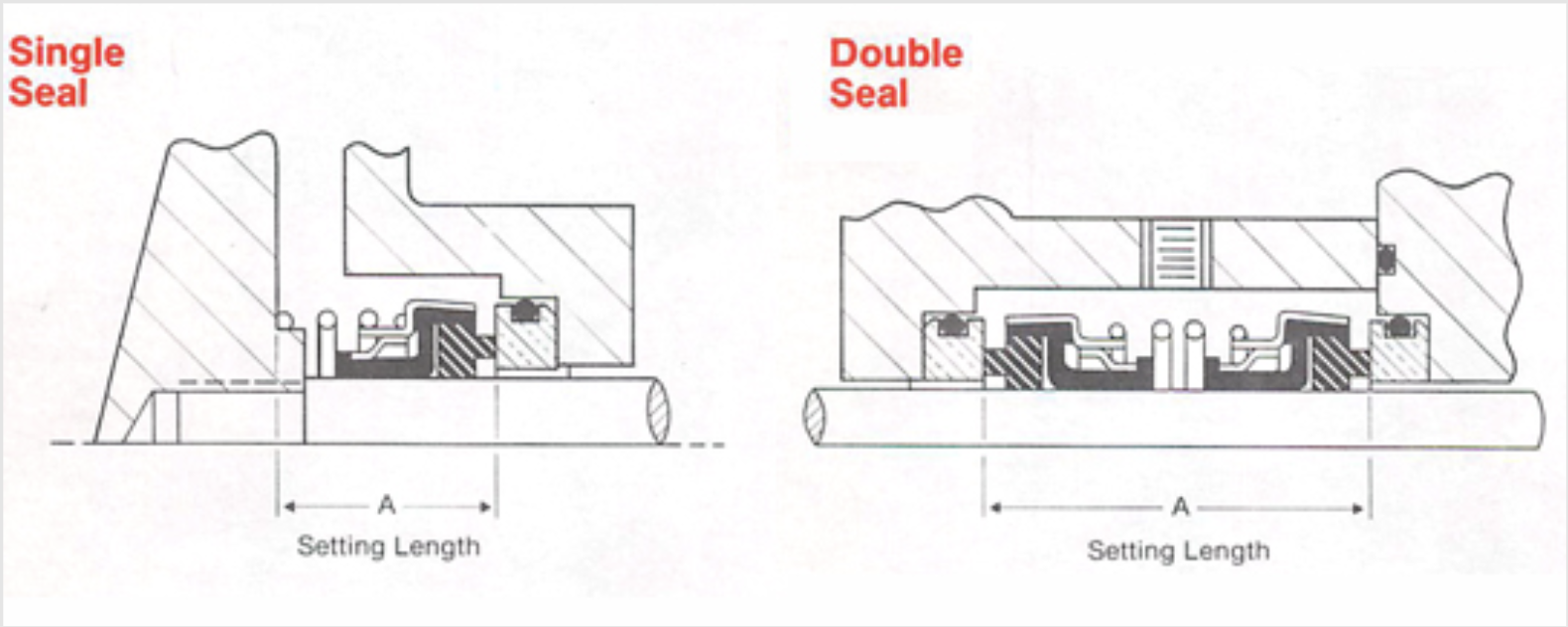

Screen Shot 2018-11-29 at 1.45.32 PM.png

Screen Shot 2018-11-29 at 1.45.44 PM.png
