A factory assembled, pressure tested, multi spring, balanced cartridge seal which utilizes Quench & Drain ports for pumped fluids that can harden or crystallize. This low profile seal fits all ANSI pumps without modification.

A factory assembled, pressure tested, multi spring, balanced cartridge seal which utilizes Quench & Drain ports for pumped fluids that can harden or crystallize. This low profile seal fits all ANSI pumps without modification.

 NUTECH 2 MECHANICAL SEAL

Features and Benefits

  • EASY TO INSTALL - No measuring is required to install the NUTECH II cartridge seal.

  • NO SHAFT OR SLEEVE WEAR - There are no dynamic "O" rings on the shaft to cause fretting to your equipment and the seal is designed so that all wear parts are disposable.

  • ALIGNMENT - Stationary seats are resiliently mounted on an "O" ring and allowed to float for maximum face squareness.

  • IMPELLER ADJUSTMENT PUMPS - The NUTECH II can be installed on pumps requiring an impeller adjustment after the seal is installed. Adjustments can be made without removing the seal or dismantling the pump.

  • NO MODIFICATION TO EQUIPMENT - The NUTECH II low profile seal fits all ANSI pumps without modification and is superior in dimensional specifications to any other single cartridge seal commercially available.

  • API - Given pump information the NUTECH II can be manufactured to meet the American Petroleum Institute specifications for many petrochemical services.

  • 3 WAY CLIPS - A clip design that not only centers seal but stops axial movement in both directions.

  • "OFF THE SHELF" AVAILABILITY - The NUTECH II seal is available in 1.00" to 3 3/4". Larger shaft diameters are available on request.

  • PRESSURE TESTED - All NUTECH II seals are pressure tested before leaving our factory.



Screen Shot 2018-11-28 at 8.31.03 PM.png

*Consult factory ** EPR, KALREZ, AFLAS, T.V.  Special material and design features available upon request.  Aflas is a registered trademark of Asahi Flass Co. Ltd. Hastelloy is a registered trademark of Cabot Corp. Viton and Kalrez are registered trademarks of Dupont.

*Consult factory
** EPR, KALREZ, AFLAS, T.V.

Special material and design features available upon request.

Aflas is a registered trademark of Asahi Flass Co. Ltd.
Hastelloy is a registered trademark of Cabot Corp.
Viton and Kalrez are registered trademarks of Dupont.

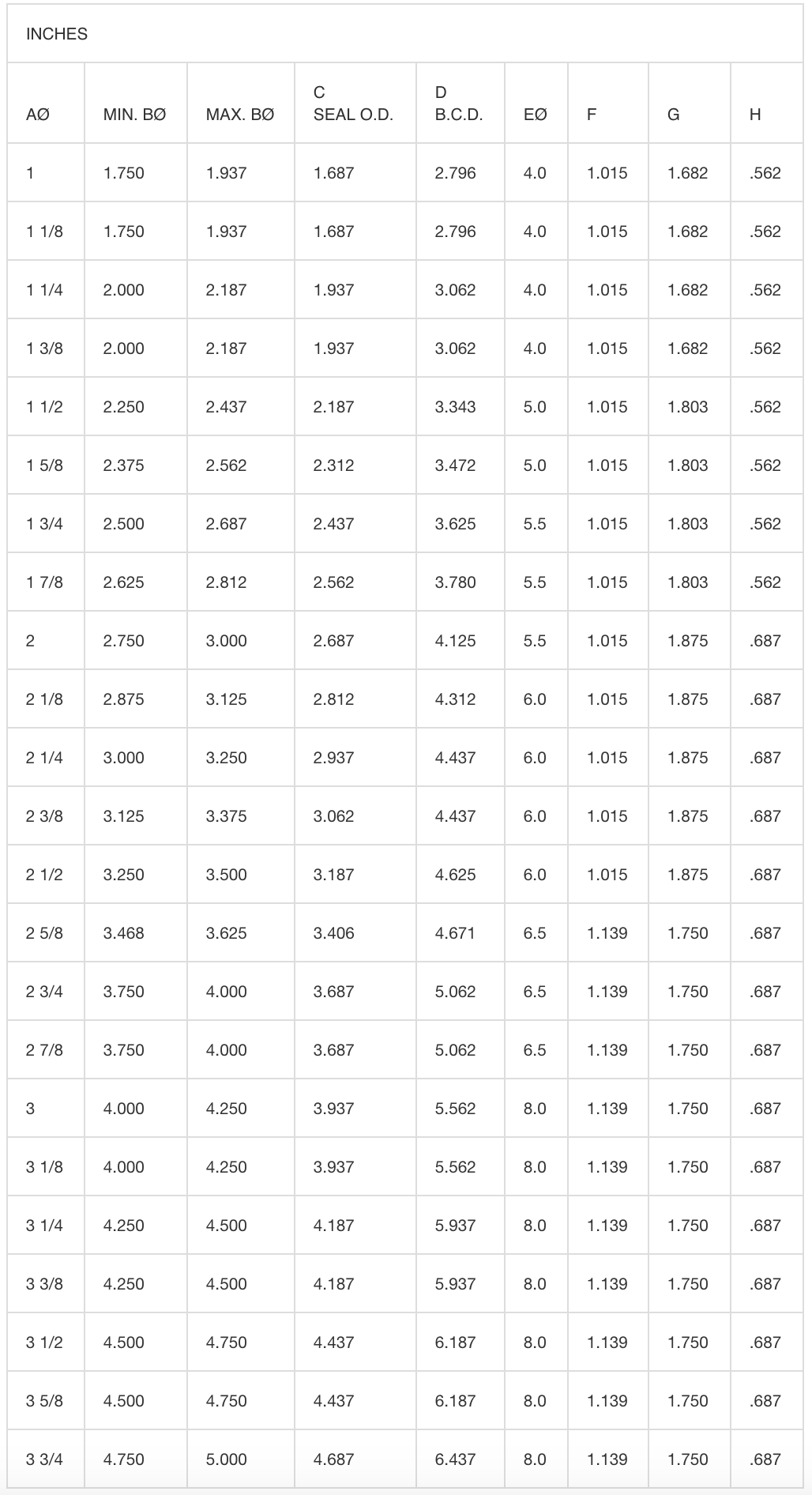

Screen Shot 2018-11-28 at 8.31.24 PM.png
