A factory assembled, pressure tested, single spring cartridge seal suitable for abrasive applications and sewage pumps.

NUTECH 5 MECHANICAL SEAL

Features and Benefits

Unique heavy-duty single spring design resists clogging in abrasive applications.
Cartridge designed for easy installation.
In-field repair kit available to reduce down-time.
Static O-Ring eliminates shaft/sleeve fretting.
Pressure tested for assurance.

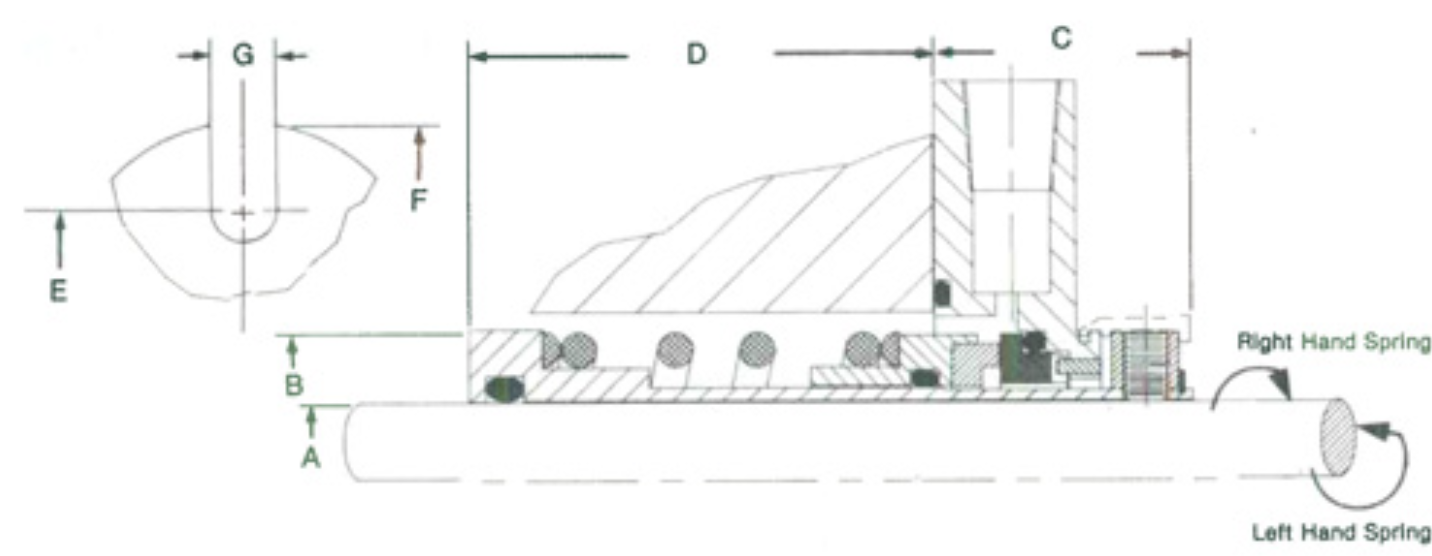

Screen Shot 2018-11-28 at 8.45.16 PM.png


    INCHES









    CODE SIZE
    SHAFT SIZE
    SEAL OUTBOARD DISTANCE
    SEAL OUTBOARD DISTANCE
    SEAL INBOARD DISTANCE
    BOLT CIRCLE DIA.
    GLAND PLATE OUTBOARD DISTANCE
    BOLT SLOT WIDTH



    A
    B
    C
    D
    E
    F
    F


    16
    1
    1.625
    1.437
    1.375
    2.796
    4
    0.562


    18
    1.125
    1.625
    1.437
    1.437
    2.796
    4
    0.562


    20
    1.25
    2
    1.437
    1.562
    3.062
    4
    0.562


    22
    1.375
    2
    1.437
    1.625
    3.062
    4
    0.562


    24
    1.5
    2.125
    1.437
    1.687
    3.343
    5
    0.562


    26
    1.625
    2.281
    1.437
    1.687
    3.472
    5
    0.562


    28
    1.75
    2.437
    1.437
    1.687
    3.625
    5.5
    0.562


    30
    1.875
    2.625
    1.437
    1.875
    3.87
    5.5
    0.562


    32
    2
    2.75
    1.437
    2
    4.125
    5.5
    0.562


    34
    2.125
    2.875
    1.437
    2
    4.125
    6
    0.687


    36
    2.25
    3
    1.437
    2.125
    4.437
    6
    0.687


    38
    2.375
    3.156
    1.437
    2.125
    4.437
    6
    0.687


    40
    2.5
    3.281
    1.437
    2.25
    4.625
    6
    0.687


    44
    2.75
    3.531
    1.687
    2.437
    5.052
    6.5
    0.687


    46
    2.875
    3.656
    1.687
    2.5
    5.062
    6.5
    0.687


    48
    3
    3.871
    1.687
    2.5
    5.562
    8
    0.687


    50
    3.125
    3.875
    1.687
    2.625
    5.562
    8
    0.687


    52
    3.25
    4
    1.687
    2.625
    5.937
    8
    0.687


    54
    3.375
    4.187
    1.687
    2.75
    5.937
    8
    0.687


    56
    3.5
    4.375
    1.687
    2.75
    6.187
    8
    0.687


    58
    3.625
    4.5
    1.687
    2.875
    6.187
    8
    0.687


    60
    3.75
    4.625
    1.687
    2.875
    6.437
    8
    0.687


    62
    3.875
    4.182
    1.687
    3
    6.437
    8
    0.687


    64
    4
    4.937
    1.687
    3
    6.687
    9
    0.687
